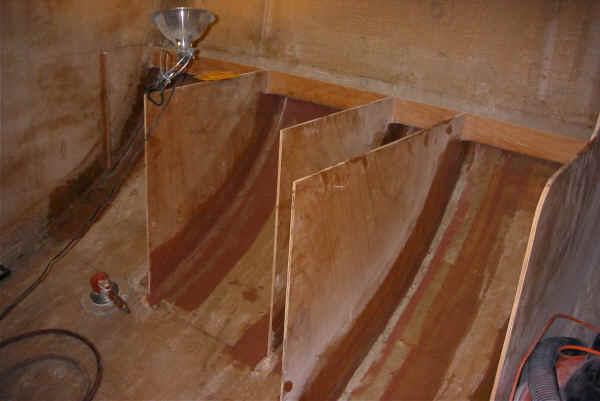

The first bulkheads in the galley. these are the separations between the cabinets.

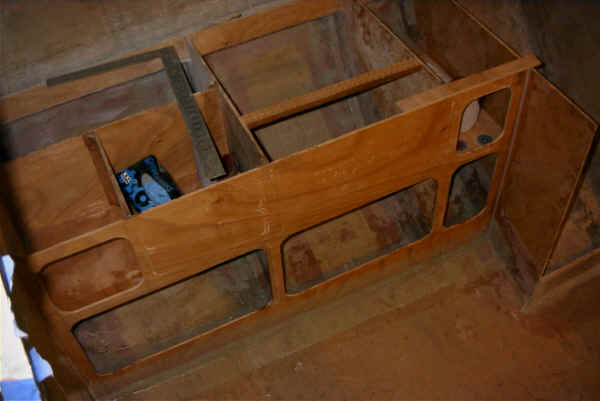

Some of the internal shelving, and the back shelf have been added.

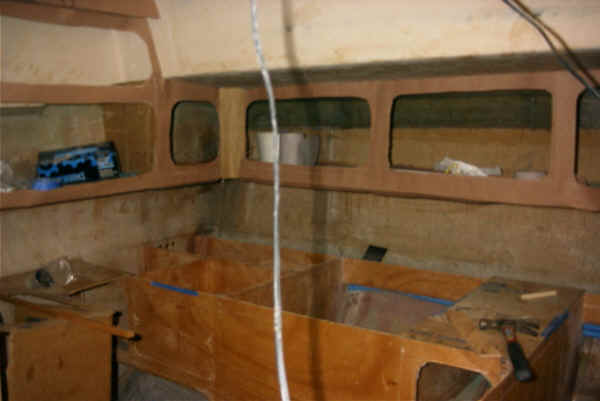

Now the front is on - view from above, entering via the companionway

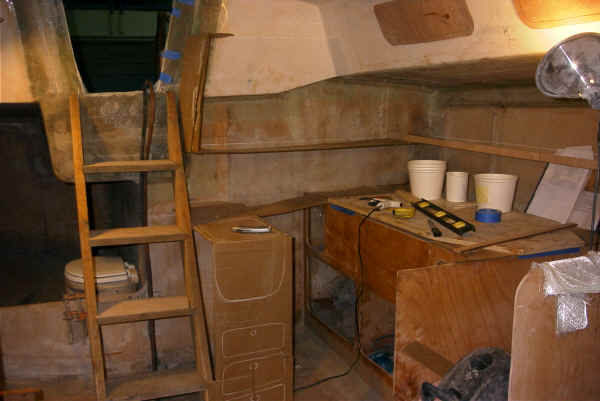

I still build the prototypes in cardboard - except the stairs, which I built
of wood so we could test the feel of the steps rise 11.5" and run 8.5"

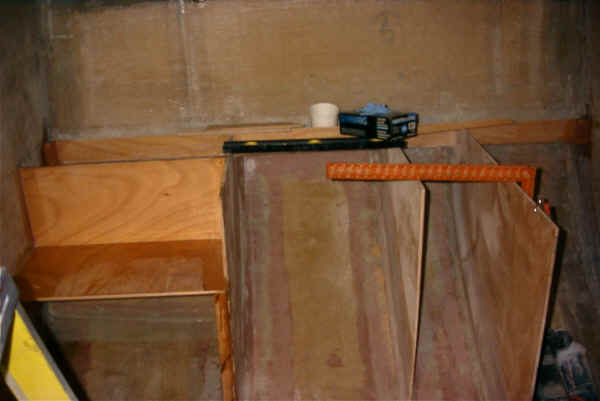

The shelf fronts are mocked up

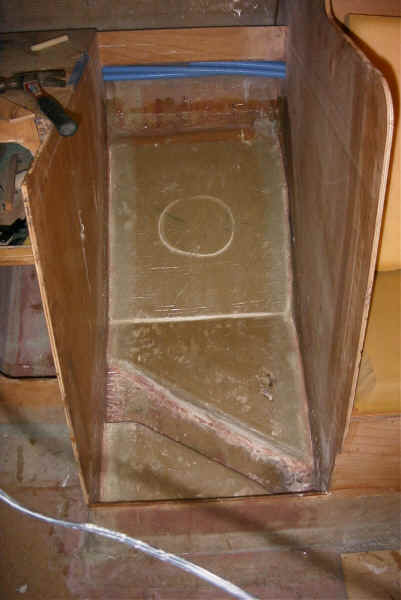

The refrigerator space is ready for the refer box. Note the chanel on the bottom where the water pipes will go, and the conduit for the electric wires in back. The circle was just a hole cut in the foam to help locate the various layers that were glued into place to make the curve of the hull a flat plane.
