Deck and Lockers

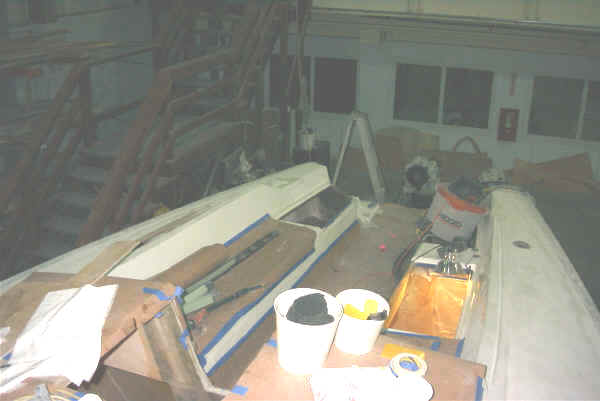

Here is a view standing on the coach roof looking aft over the cockpit.  The fuel locker is shown on the far left.   The illuminated hatch looks into the engine room.

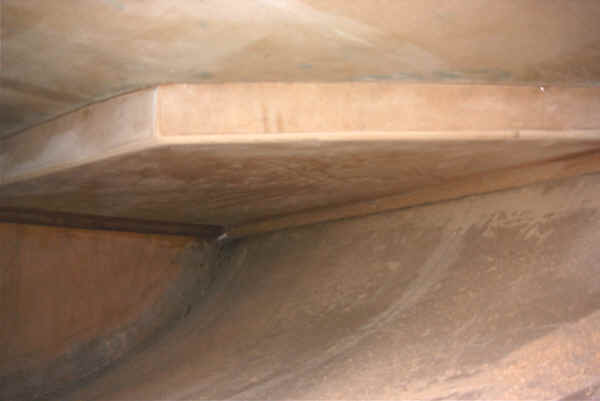

This is a view of the bottom of the propane and spare fuel locker (accessible from on deck) taken from inside the large deck locker.  It had to be lowered 4" from normal deck height to accommodate the standard gerry cans used for spare fuel.

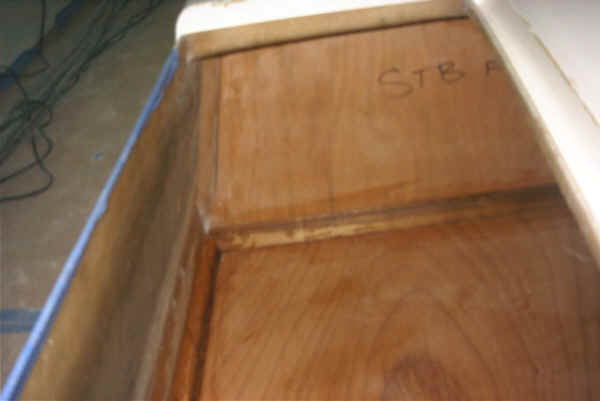

The same locker from above.  All the joints will have to be fiberglassed.  The bottom already has a protective layer of 6oz cloth.

The entry way before the bridge deck was added.

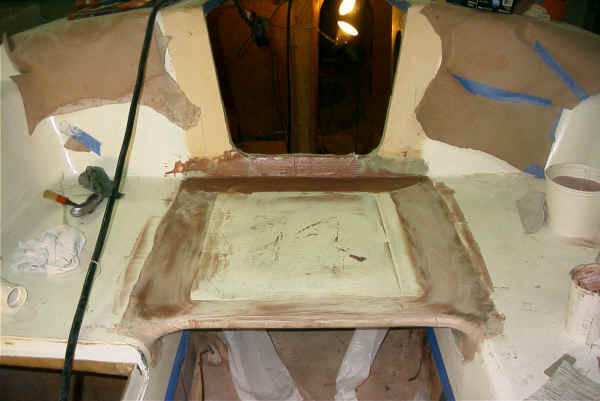

The bridge deck is installed in front of the companionway.
